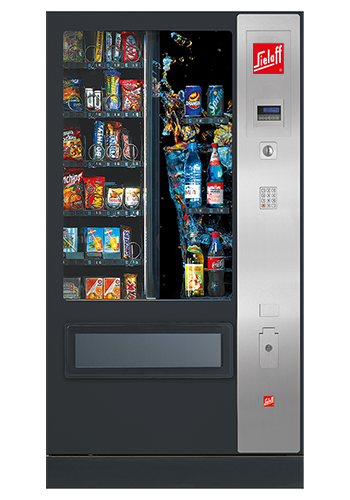

The FS series, FS 1500 and FS 2020, are your customers' first choice when it comes to cold drinks, confectionery, snacks, etc. The combination of chutes and spirals guarantees efficiency and optimum layout. The products are dispensed in accordance with the proven First-in-First Out principle.

Use the numerous options and variants of the FS series: the FS 1500 with its small footprint or the FS 2020 providing huge capacity. All machines in this series are available in EC and High-Security variants, FS 2020 is also available as an Outdoor version. User friendly and versatile: The FS range is perfect for any location.



FS series variants

General Information
Layout 3/12 + 4
Layout 4/18 + 3

Introduction

  • Vending of confectionery, snacks, drinks and non-food items
  • Stainless steel shelves and spirals
  • Versatility at every location
  • High capacity vs small footprint
  • Modular design ensures ease to servicing and recycling

Dimensions: 1,830 x 700 x 880 mm (height x width x depth)*
Weight: Approx. 353 kg (without products, depending on the layout)
Electrical connection values: 220 - 230 V / 50/60 Hz / min. 10 A
Power consumption: 400 W (varies depending on the type of chiller unit)
Spirals per shelf: 3 - 4
Chutes: Up to 4

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • EC = Operator panel made from stainless steel
  • RB = Operator panel RAL painted

Cabinet colors

  • Pure white (RAL 9010)
  • White aluminum (RAL 9006)
  • Jet black (RAL 9005)

  • Multiflex-pusher: instead of spirals, specially suited for the dispense of bulky items
  • Light barrier
  • Reinforced shelf: For products with a total weight of more than 15 kgƒ
  • Ingress protection

  • 6 selections of bags
  • 6 selections of bar products
  • 4 narrow chutes (each 85 mm width)

All layout examples are suggestions only. Please contact us for more layout options.

  • 6 selections of bags
  • 12 selections of bar products
  • 3 narrow chutes (each 85 mm width)

All layout examples are suggestions only. Please contact us for more layout options.

General Information
Layout 4/18 + 5
Layout 5/24 + 6
Layout 6/27 + 5

Introduction

  • Vending of confectionery, snacks, drinks and non-food items
  • Stainless steel shelves and spirals
  • Versatility at every location
  • High capacity vs small footprint
  • Modular design ensures ease to servicing and recycling

Dimensions: 1,830 x 990 x 880 mm (height x width x depth)*
Weight: Approx. 436 kg (without products, depending on the layout)
Electrical connection values: 220 - 230 V / 50/60 Hz / min. 10 A
Power consumption: 670 (varies depending on the type of chiller unit)
Spirals per shelf: 4 - 6
Chutes: Up to 6

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • EC = Operator panel made from stainless steel
  • RB = Operator panel RAL painted

Cabinet colors

  • Pure white (RAL 9010)
  • White aluminum (RAL 9006)
  • Jet black (RAL 9005)

  • Multiflex-pusher: instead of spirals, specially suited for the dispense of bulky items
  • Light barrier
  • Reinforced shelf: For products with a total weight of more than 15 kg
  • Ingress protection

  • 6 selections of bags
  • 12 selections of bar products
  • 3 normal chutes
  • 2 narrow chutes (each 85 mm width)

All layout examples are suggestions only. Please contact us for more layout options.



  • 6 selections of bags
  • 18 selections of bar products
  • 6 narrow chutes (each 85 mm width)

All layout examples are suggestions only. Please contact us for more layout options.

  • 9 selections of bags
  • 18 selections of bar products
  • 5 narrow chutes (each 85 mm width)

All layout examples are suggestions only. Please contact us for more layout options.

FS 1500
FS 2020

Introduction

  • Version for locations exposed to vandalism
  • Anti-vandalism panel
  • Coin insert slide and coin return drum
  • Reinforced locking lever protection
  • Metal keypad

Dimensions: 1,830 x 700 x 900 mm (height x width x depth)*
Weight: Approx. 373 kg (without products, depending on the layout)
Electrical connection values: 220-230 V / 50/60 Hz / min. 10 A
Power consumption: 400 W (varies depending on the type of chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • EC = Operator panel made from stainless steel
  • RB = Operator panel RAL painted

Cabinet colors

  • Pure white (RAL 9010)
  • White aluminum (RAL 9006)
  • Jet black (RAL 9005)

  • Multiflex-pusher: instead of spirals, specially suited for the dispense of bulky items
  • Light barrier
  • Reinforced shelf: For products with a total weight of more than 15 kg
  • Ingress protection
  • Security frame with side lock

Dimensions: 1,830 x 990 x 900 mm (height x width x depth)*
Weight: Approx. 460 kg (without products, depending on the layout)
Electrical connection values: 220-230 V / 50/60 Hz / min. 10 A
Power consumption: 670 W (varies depending on the chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • EC = Operator panel made from stainless steel
  • RB = Operator panel RAL painted

Cabinet colors

  • Pure white (RAL 9010)
  • White aluminum (RAL 9006)
  • Jet black (RAL 9005)

  • Multiflex-pusher: instead of spirals, specially suited for the dispense of bulky items
  • Light barrier
  • Reinforced shelf: For products with a total weight of more than 15 kg
  • Ingress protection
  • Security frame with side lock
FS 2020

Introduction

  • Rain shield and weatherproof protection
  • Protection class: IP24
  • Weather-resistant up to -20°C
  • Residual current circuit breaker
  • High-performance chiller unit with heater with "frost monitoring function": the internal temperature is held above 0 °C
  • Rear panel (advertising opportunity)
  • Front and side kickplates
  • Version suitable for locations exposed to vandalism
  • Security frame with additional lock
  • Anti-vandalism panel
  • Coin insert slide and coin return drum
  • Reinforced locking lever protection
  • Metal keypad

Dimensions: 1,830 x 990 x 900 mm (height x width x depth)*
Weight: Approx. 460 kg (without products, depending on the layout)
Electrical connection values: 220-230 V / 50/60 Hz / min. 10 A
Output: 850 W (varies depending on the type of chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • EC = Operator panel made from stainless steel
  • RB = Operator panel RAL painted

Cabinet colors

  • Pure white (RAL 9010)
  • White aluminum (RAL 9006)
  • Jet black (RAL 9005)

Talent and technology

Energy

Energy

Energy

  • Energy-saving LED lighting on the inside
  • Energy-saving fans on the cooling unit
  • Insulating safety glass
  • Energy-saving mode reduces power consumption by increasing temperatures and switching off the illumination
Chiller unit

Chiller unit

Chiller unit

  • Low-maintenance, hermetically closed cooling system with an electronically controlled, high-performance push-in chiller unit
  • Colling agent HFKW-134a with a GWP of 1430
  • Optional: HC R-290 cooling agent with a GWP of 3
  • Targeted cooling of the drinks area from 6 – 8 °C and of the snack area from 12 – 15 °C
Payment systems

Payment systems

Payment systems

  • Easy to integrate
  • EVA cut out
  • MDB standard
  • Optional: EXECUTIVE

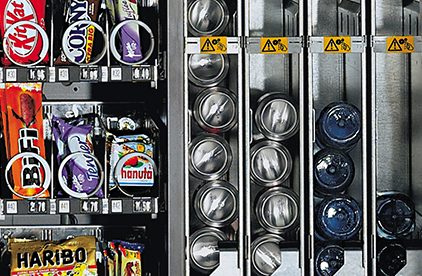

Chutes

Chutes

Chutes

  • Depending on the layout up to 4 (FS 1500) or 6 (FS 2020) chutes can be fitted
  • Easy to replace and convert on site
  • Depending on their length, the cans and bottles can be loaded 1 - 4 deep in the chutes
  • DC technology
  • Different chute widths for cans and bottles from 0.2 to 2.0 l

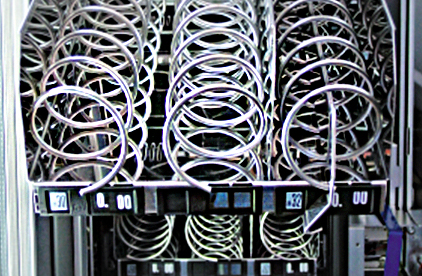

Spiral shelves

Spiral shelves

Spiral shelves

  • Height-adjustable shelves made from stainless steel
  • Layout can be re-configured on site
  • The upper shelves tilt downwards for easy filling
  • Shelves with self-centering and cordless connector

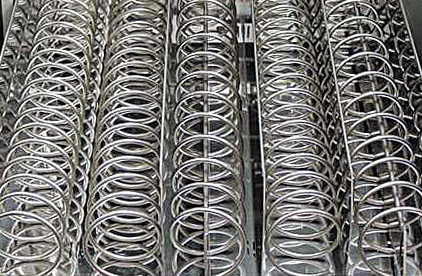

Spirals

Spirals

Spirals

  • High-shiny stainless steel spirals
  • Standardised spirals in all Sielaff FS and SÜ machines
  • Spirals available in many different sizes
  • Numerous adjustment aids available, e. g., vertical and horizontal spiral dividers
  • First-in-first-out principle
