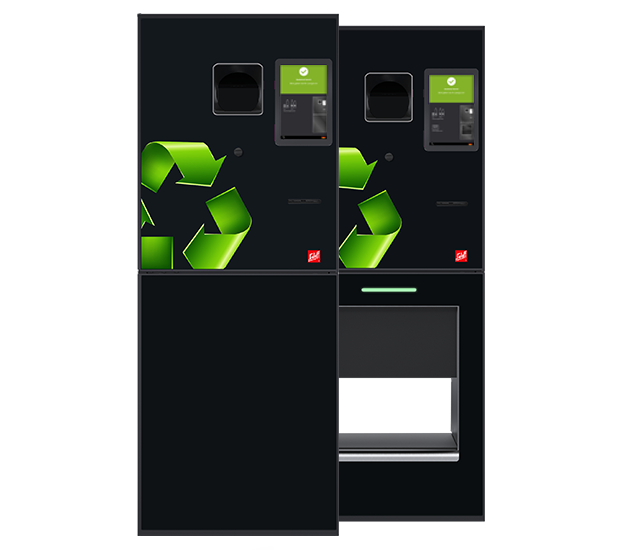

Modular solutions

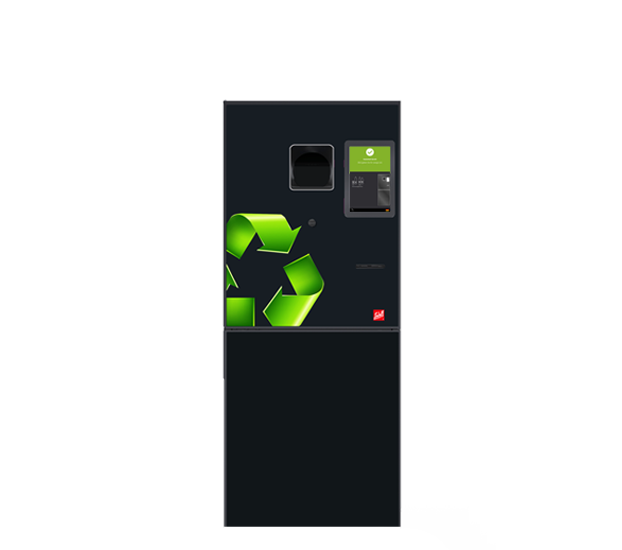

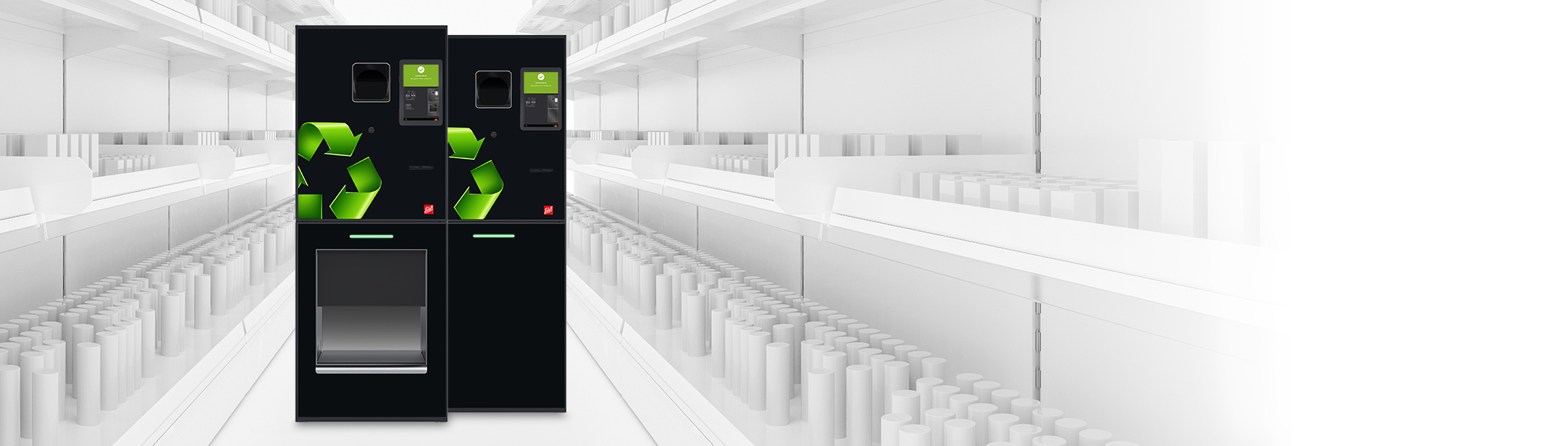

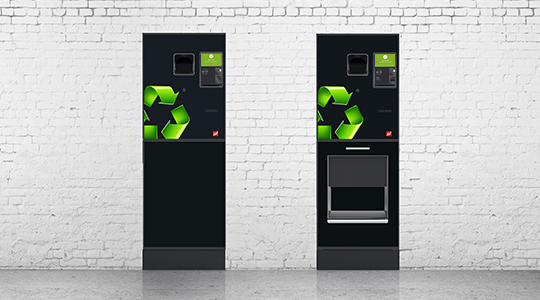

SiVario 2020

State-of-the-art technology for new challenges

Advantages at a glance

Basic

Features

  • Reverse vending of disposable and reusable PET containers, glass bottles, cans, cups with EAN-code and Tetra Paks
  • Camera-based, rotationless Omega 360o -Container recognition in real time
  • Precision scales: Weight, barcode and shape recognition, safety marking as well as recognition of full containers in the bottle acceptance area
  • Optimized shape of the coin insert ring to prevent running drips
  • Easy cleaning:
    Menu-guided cleaning with animation
    - With the intuitive color concept of the surfaces to be cleaned
  • Particularly easy to service due to complete access to all operating elements from the front
  • Electronic lock - Opening by code

Dimensions with crate acceptance: 1,715 x 600 x 1,080 mm (height x width x depth)*
Dimensions without crate acceptance: 1,715 x 600 x 955 mm (height x width x depth)*
Weight with crate acceptance: Approx. 330 kg
Weight without crate acceptance: Approx. 270 kg
Electrical connection values: 3L/N/PE, 400 V, 50 Hz
Power consumption: Max. 650 W, 70 W Standby
Temperature: +10oC up to +40oC
non-condensing humidity
Wall opening: 1,750 x 650 mm (height x width)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

  • Thermal printer with cutting mechanism;
    Receipt roll:
    - Diameter up to 200 mm
    - Length approx. 500 m
  • Paper width: 58 mm - 60 mm
  • Paper thickness: 60 g/m2- 110 g/m2
  • Receipt is displayed externally
  • Receipt data can also be loaded onto a mobile app via QR-code.

  • Standard XML data interface
  • LAN (Ethernet)

  • CE, DPG-certified

Standard:

  • Branding RAL 9005

Optional:

  • Branding RAL 9006
  • Branding "Kugel"
  • Branding "Biene"
  • Customizable branding

  • SiFace Software:
    - Product range releases
    - Change opening times
    - Installing coupon promotions, donations or advertising on the display

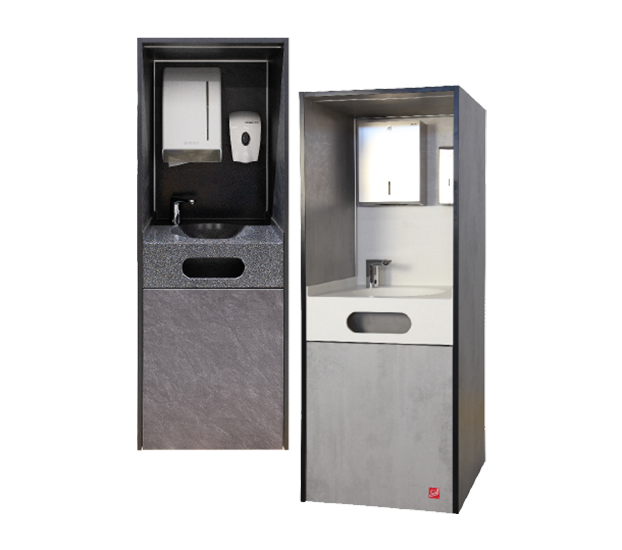

  • SiWash 2020 - The hygiene station: Emptying any residual liquids for improved hygiene

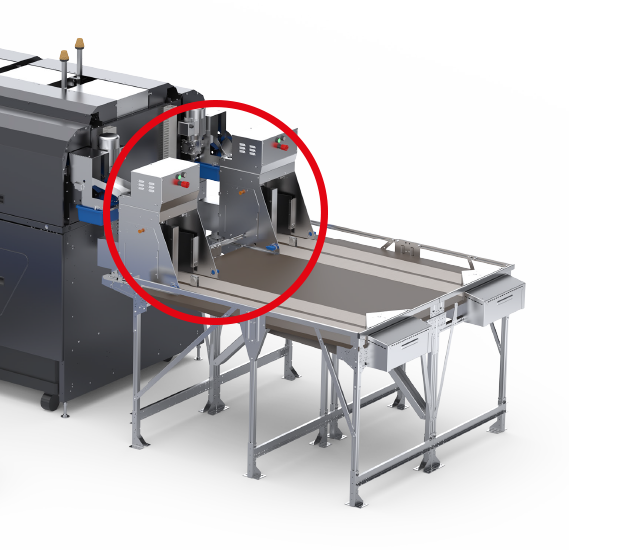

  • Connection to conveyor and sorting units for disposable and reusable packaging

Variants

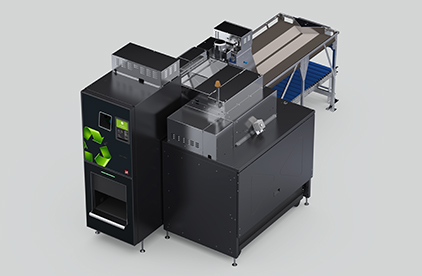

MonoSort Short

MonoSort Short

MonoSort Short

  • Space miracle with compact design
  • Side-standing enclosures
  • The roller conveyor runs underneath the bottle table
  • Material separation is possible inside the enclosure
  • Removable on the front, rear or side
Learn more

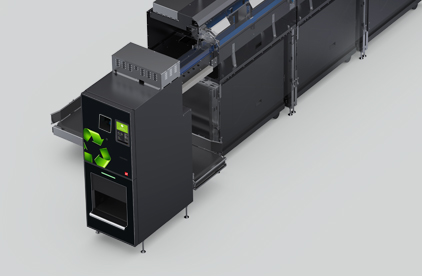

MonoSort

MonoSort

MonoSort

  • Acceptance unit and enclosures in a line
  • Good accessibility
  • Optimum product separation with two individual compactors per enclosure
  • Two compactors on one enclosure are possible
  • Removal direction right or left
  • Material separation possible with several enclosures or inside enclosures
  • 1 to 5 enclosures possible with only 1 compactor
  • Dynamic resorting; the system remains operational even if a container is emptied.
Learn more

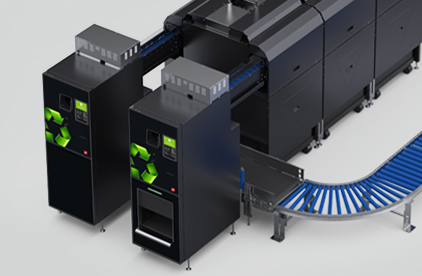

DualSort

DualSort

DualSort

  • 2 compactors per enclosure
  • Removal direction right or left
  • Material separation with several enclosures
  • Up to 7 enclosures possible
  • Dynamic resorting; the system remains operational even if a container is emptied.
Learn more
Personal consulting

Personal consulting

Personal consulting

  • Our specialists' consulting to suit your individual requirements
Individual planning

Individual planning

Individual planning

  • System planning according to local conditions
  • Support of our specialists
  • Configure your system as required
Installation

Installation

Installation

  • Installation and commissioning by our competent staff
RVM service

RVM service

RVM service

  • Experienced, practice-oriented hotline staff
  • Germany-wide Sielaff Service technicians network
  • Maintenance and professional cleans on site
  • Maintenance
